Do-It-Yourself Dock Hardware

Deck Hardware

Pipe Dock Hardware – Aluminum

All of our pipe dock hardware is manufactured from 6061T6 aluminum, which eliminates rusting problems. Our corner brackets and side brackets accept 2 3/8″ O.D. pipe leg for more rigidity.



	Picture	Description/Size
A		Inside Corner Bracket – 6″ x 6″ x 6″ Aluminum
B		Side Bracket – 5 1/2″ x 8″ Aluminum
C		Aluminum Pipe Leg – 2 3/8″ OD
D		Base Pad – 6″ x 10″ Aluminum
E		Pipe Leg Cap – Black – for 2 3/8″ OD pipe
F		Flex Hinge – 5″ x 6″-Aluminum – sold as a pair with 1 1/4″ x 15″ gold anodized pin Flex Hinge – 5″ x 6″ – Galvanized Steel -sold as a pair with 1 1/4 x 15” gold anodized pin
G		Leg Brace and Standard Collar – Sold in Pairs – Aluminum pipe leg and base pad sold separate. Available in 6′ and 8′
G		Leg Brace and Split Collar – Sold in Pairs – Aluminum pipe leg and base pad sold separate Available in 6′ and 8′



Floating Dock Hardware – Galvanized Steel



Picture	Description/Size
	Outside Male Corner Connecting Hinge 10″ x 10″ x 5″ Galvanized Steel
	Outside Female Corner Connecting Hinge 10″ x 10″ x 5″ Galvanized Steel
	Male T Connector Hinge 5″ x 5″ Galvanized Steel
	Female T Connector Hinge 5″ x 5″ Galvanized Steel
	Outside Corner End 10″ x 10″ x 5″ Galvanized Steel
	Chain Retainer 5 ” x 5 ” x 2″ Galvanized Steel
	Connector Pin 3/4″ x 3 1/4″ Galvanized Steel
	Anchor Chain Corner 8 1/2″ x 8 1/2″ x 5 1/4″ Galvanized Steel
	Galvanized Anchor Chain Available in 3/8″ and 1/2″

Please inquire about additional floating dock hardware including backer plates and chain retainer.

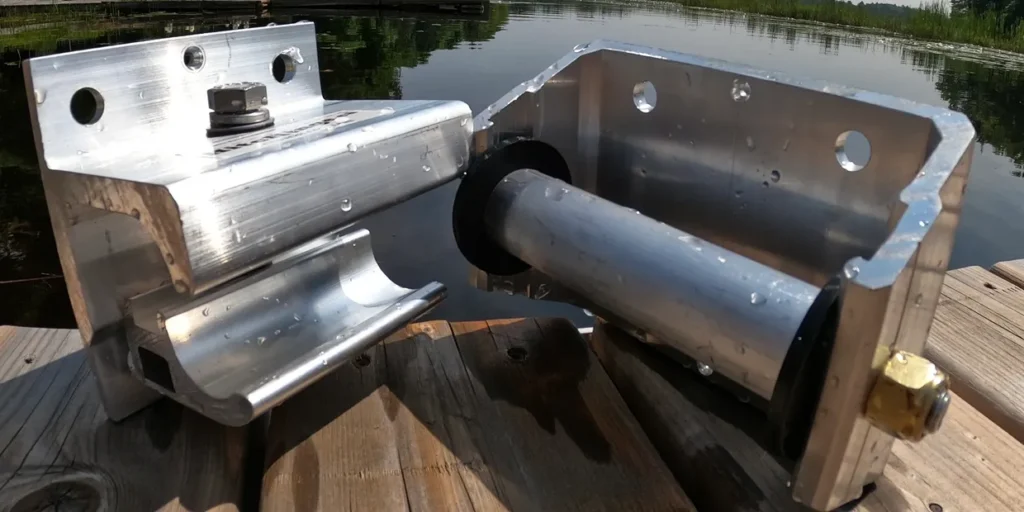

HITCHINGE

This Revolutionary Dock Coupler, with all the parts self contains, offers a simple process that supports the ramp loads, in alignment, while actuating from above decking with a single tool.

The HITCHINGE eliminates working in-between dock segments and the stress of maintaining  the loads, elevations and alignments all necessary to insert or remove pins without dropping parts as with a typical dock hinge.







Floatation Billets

All of our billets feature rotation molded polyethylene shell with an EPS foam core. The flat surface allows you to easily bolt the floats to most dock frames. Unaffected by rodents, petroleum and most ice conditions.



Size	Capacity
24″ x 36″ x 12″	335 lbs.
24” x 48” x 12”	470 lbs.
24″ x 48″ x 16″	600 lbs.
24″ x 48″ x 24″	900 lbs.
36″ x 48″ x 12″	700 lbs.
36″ x 48″ x 16″	900 lbs.



Dock Leg Leveler

Slides over dock leg (2-3/8 OD Leg) and uses a winch to raise or lower leg for Spring Levelling
