Truss Pipe Docks

Aluminum Truss Pipe Docks

R&J Machine docks are a result of over 45 years of quality workmanship. All of our aluminum docks are constructed with 6061T6 marine grade aluminum. Our heavy duty welded aluminum truss design allows us to span up to 16’ between legs. Our heavy duty corner extrusion, that accommodates 2 3/8” outside diameter pipe leg, features full length welded gussets in all corners and replaceable leg holder bolt assembly. Our Aluminum Truss Pipe Docks have a freeboard height of 15-18” from the waters surface.

All of our docks are available in frame only configuration or with 2’ removable decking panels. Our decking is available in Western Red Cedar, PT Sienna  Decking and Pro PVC decking. All of our decking panels are locked in place using easy to remove full length hold down trim strips. This prevents your decking panels from coming off in rough water conditions, while enabling you to remove your panels in the fall without getting into the water. Our docks also come with stainless steel hardware.



pipe-dock-with-boatlift
Truss Pipe Docks have a freeboard height of 15-18” from the waters surface.



Our heavy duty corner extrusion, that accommodates 2-3/8” outside diameter pipe leg, features full length gussets in all corners and replaceable leg holder bolt assembly.



Quick Connect assembly allows our pipe truss docks to connect without hardware or pins. (safety hitch pin included for high water situations)



This chart shows the approximate weight in (lbs.) of our frame only  Truss Pipe Dock sections.

LENGTH

12′ 16′ 20′ 24′
WIDTH 4′ 137 lbs 165 lbs 220 lbs. 250 lbs
6′ 147 lbs 200 lbs 256 lbs 292 lbs
8′ 165 lbs 234 lbs 290 lbs 329 lbs



All of our docks purchased with decking come with fascia board at no additional cost.  Our 2 3/8” pipe leg is sold separately on a per foot basis. So you only pay for the exact length needed. We also have a complete line of dock accessories such as dock bumper, cleats, ladders, flagpoles and steps.

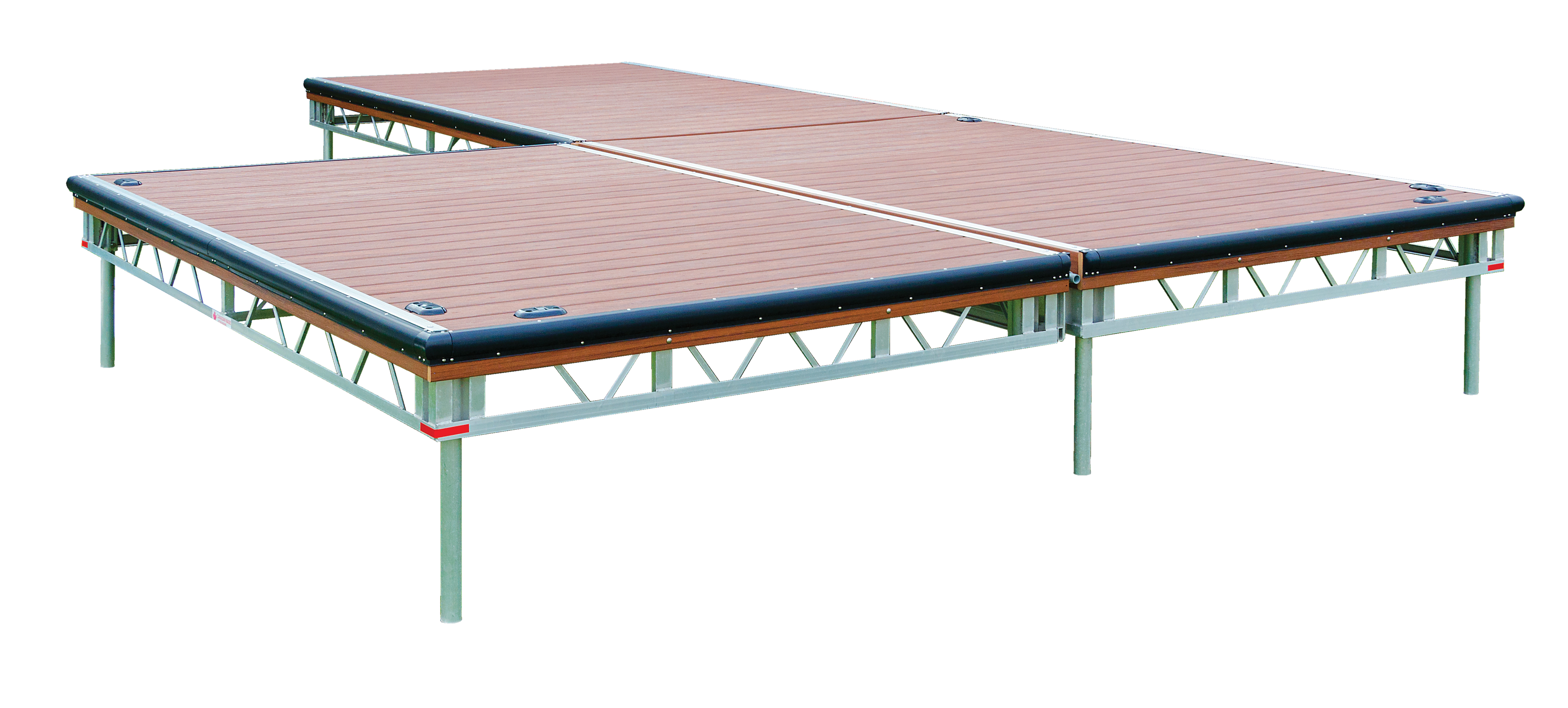

Aluminum Truss Pipe Dock with ProSignature Decking
Our legs are 2-3/8″ O.D. aluminum or steel tubing for extra rigidity.



Wheel In Dock Option

This is an excellent option for someone with fluctuating water levels or for easy removal in the fall. A hand crank enables you to raise or lower the dock easily, whether it is for the purpose of moving your dock out into deeper water or into the shore for winter removal. The PVC wheels work well on hard gravel or sand bottoms.

The PVC wheels work well on hard gravel or sand bottoms.
The PVC wheels work well on hard gravel or sand bottoms.



Dock Options and Accessories

  • Leg braces are available to allow you to operate in deeper water.
  • Aluminum base pads are available to keep legs from sinking into the bottom.
  • Concrete base pads are available also for muddy bottoms.

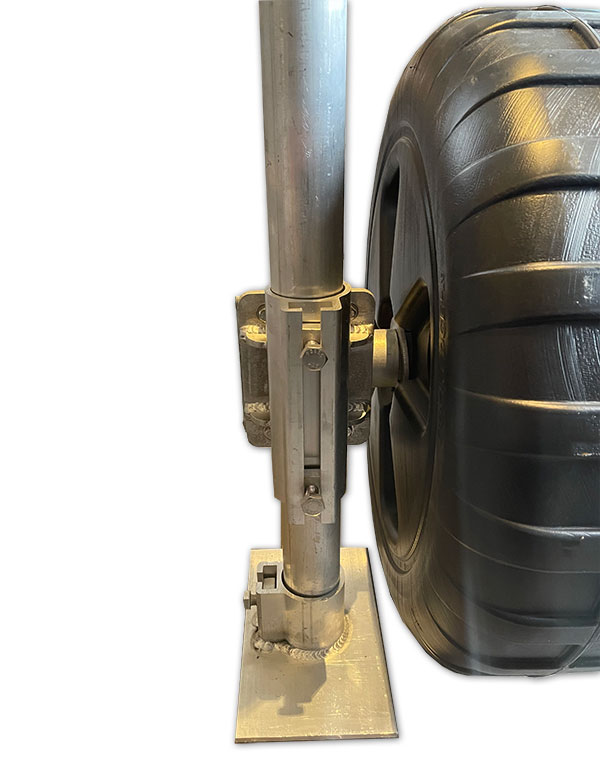

  • Standard Wheel kit
  • Dock Bumper Trim
  • Swim Ladders
  • Lower Seating Platform
  • Benches
  • Flagpoles
  • Solar Deck lights

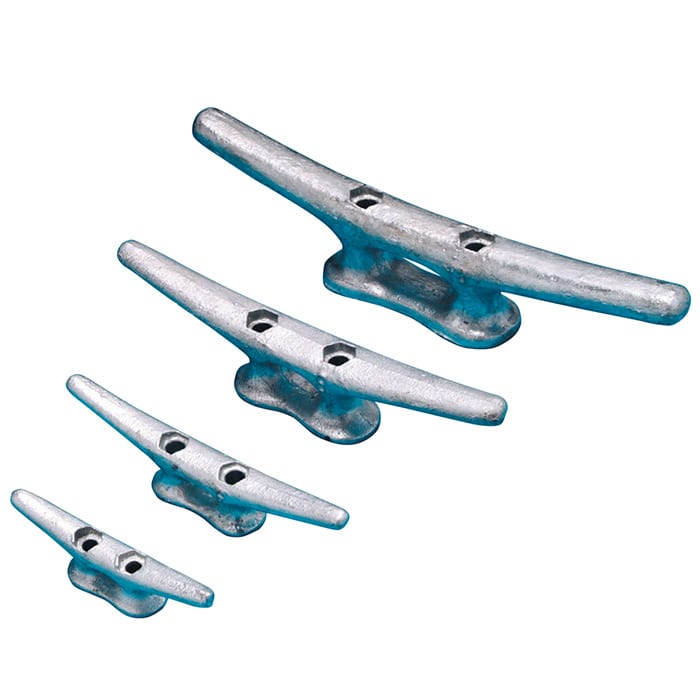

  • Mooring Cleats & Whips



More Photos of Our Pipe Docks

(click on images to expand size)

green spawn fish white & mod - transparent

Fish Friendly Dock Structure – Pipe docks have minimal contact with the lake bed because only the base of the legs come in contact with the lake bottom. They provide minimal shading of aquatic plants and the height  can be adjusted with water fluctuation. Pipe docks allow the water to flow freely beneath the framework while still providing a shaded, protected area for fish to gather.
