PWC Lifts
Our lightweight aluminum Watercraft Lifts are like no other on the market today. Seeing the need for a more structurally sound lift for today’s larger personal watercraft, we responded by going to a wider dual pivot point system.
Because the PWC Lift winch can be mounted on either side on the lift, you can easily install one on each side of your dock or have a small dock in the centre of two lifts to make it easy to board, cover and fuel your lifts.
We also relocated the winch to the outside of the lift, making it much easier to reach while standing on a dock. All pivot points ride on Delrin bushings, our pulleys use bronze bushings and the units come with marine grade carpeted bunks.
Longer legs can be added to our lifts to accommodate water depths up to 6′.
Our Pwc Lift operates in shallower water than previous designs needing only 12″ to operate.
Capacity: 1200 lbs
Lift Height: 3.5′

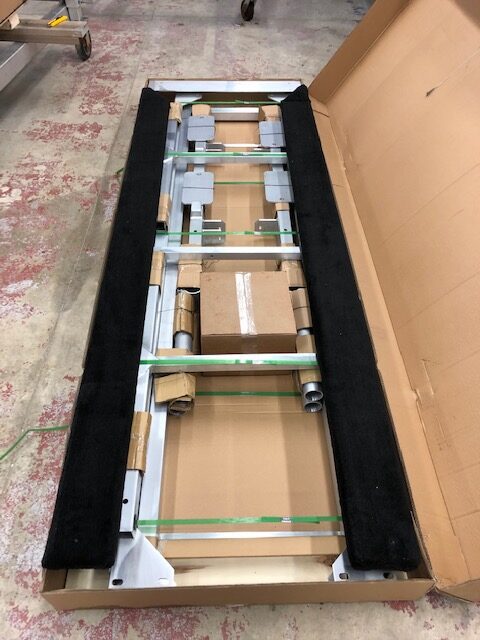

Our Pwc Lift is also available as an unassembled unit for easy pick-up/shipping. The PWC 1200 manual provides detailed instruction for easy assembling of your lift on site.
Hydraulic Personal Watercraft Lift
Using the same design as our standard cable based PWC Lift we have designed our new Hydraulic PWC Lift. Our Hydraulic PWC Lift is structurally sound for todays larger personal water craft and has a weight capacity of 1200lbs . The wider dual pivot point system offers stability when boarding the lift and can operate in shallow water.
Standard Features
Pivot points have Delrin bushings
Stainless steel hardware
Hydraulic cylinder comes standard with a Socatri Ram and corrosion resistant glands, designed specifically for harsh marine environments and military applications
Hydraulic cylinders are filled with biodegradable fluid to protect the environment should a seal or hydraulic line ever fail.
Double lip seals to keep water out while keeping the hydraulic fluid in.
The entire system runs by a 12 volt battery. A solar panel on the top of the dock box helps to keep your battery charged.
Hydraulic pump and battery unit is contained in an attractive dock box
12’ Standard hydraulic lines
Adjustable legs for deep water installation
Weighs approximately 230 lbs
