Cantilever Boat Lifts

Cantilever Wakeboard Lift

We invite you to compare the quality of our cantilever lifts with that of other manufacturers. All of our lifts are manufactured using marine grade 6061T6 aluminum rectangular tubing. Our exclusive aluminum extrusions allow for infinite adjustment of your boat lift legs, easy to adjust side guides and full length adjustable bunks. These full length bunks provide better hull support than the traditional “V” bunk and are easier to load your boat onto.

By using grease fittings and bronze bushings in all of our pulleys we help eliminate seized pulleys. All of our movement points ride on Delrin bushings for a smooth up and down motion. Each lift has four infinitely adjustable leveler legs which make leg adjustment easier than the traditional bolt adjusters. Our lifts are all equipped with either an automatic brake winch and handwheel or an electric winch that is available in 120 volt or 12 volt.

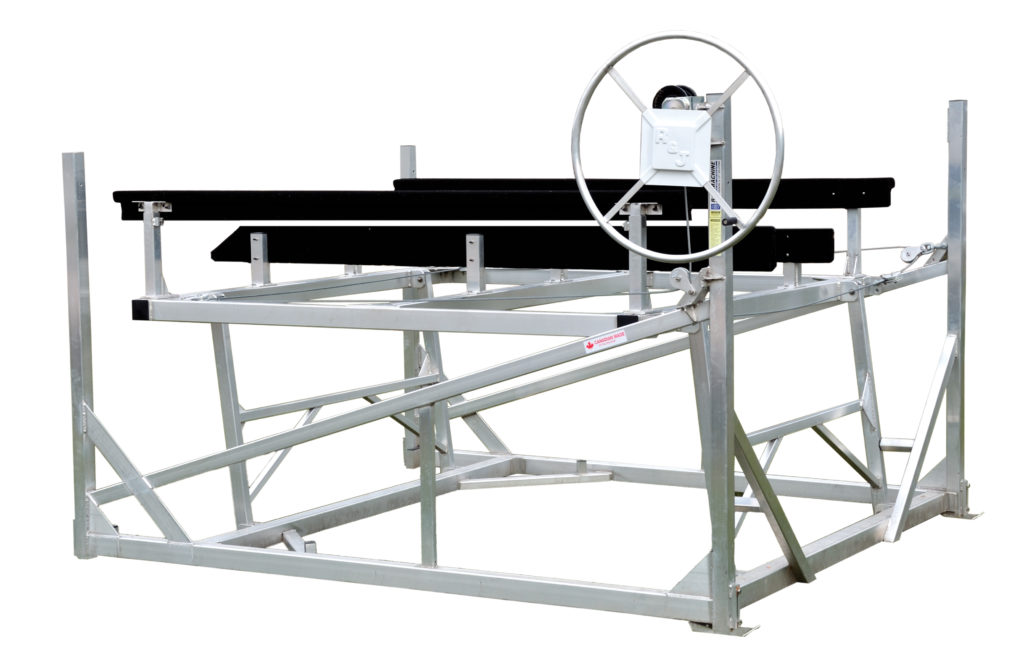

Cantilever Boat Lift

Price Includes

Boat lift with manual winch
Single set of full length carpeted bunks
Four easily adjustable legs with attached base pads
Rear guide posts

Capacity Lift Height Max. Beam Weight
1000 lbs. 4′ 76″ 278 lbs.
1500 lbs. 4′ 80″ 290 lbs.
2000 lbs. 4′ 100″ 536 lbs.
3000 lbs. 4′ 106″ 626 lbs.
4000 lbs. 4′ 110″ 717 lbs.
5000 lbs. 4′ 110″ 856 lbs.
6000 lbs. 4′ 113″ 945 lbs.

Options  (See Boat Lift Options & Accessories Page for more detail)

  • Electric winch
  • Remote Control
  • 12 Volt Solar Electric Winch
  • Wheel Kit
  • Full length side guides
  • Motor stop
  • Cat Walk Brackets
  • Extruded PVC Bunks
  • Raised bunks for ski boats
  • Roof systems

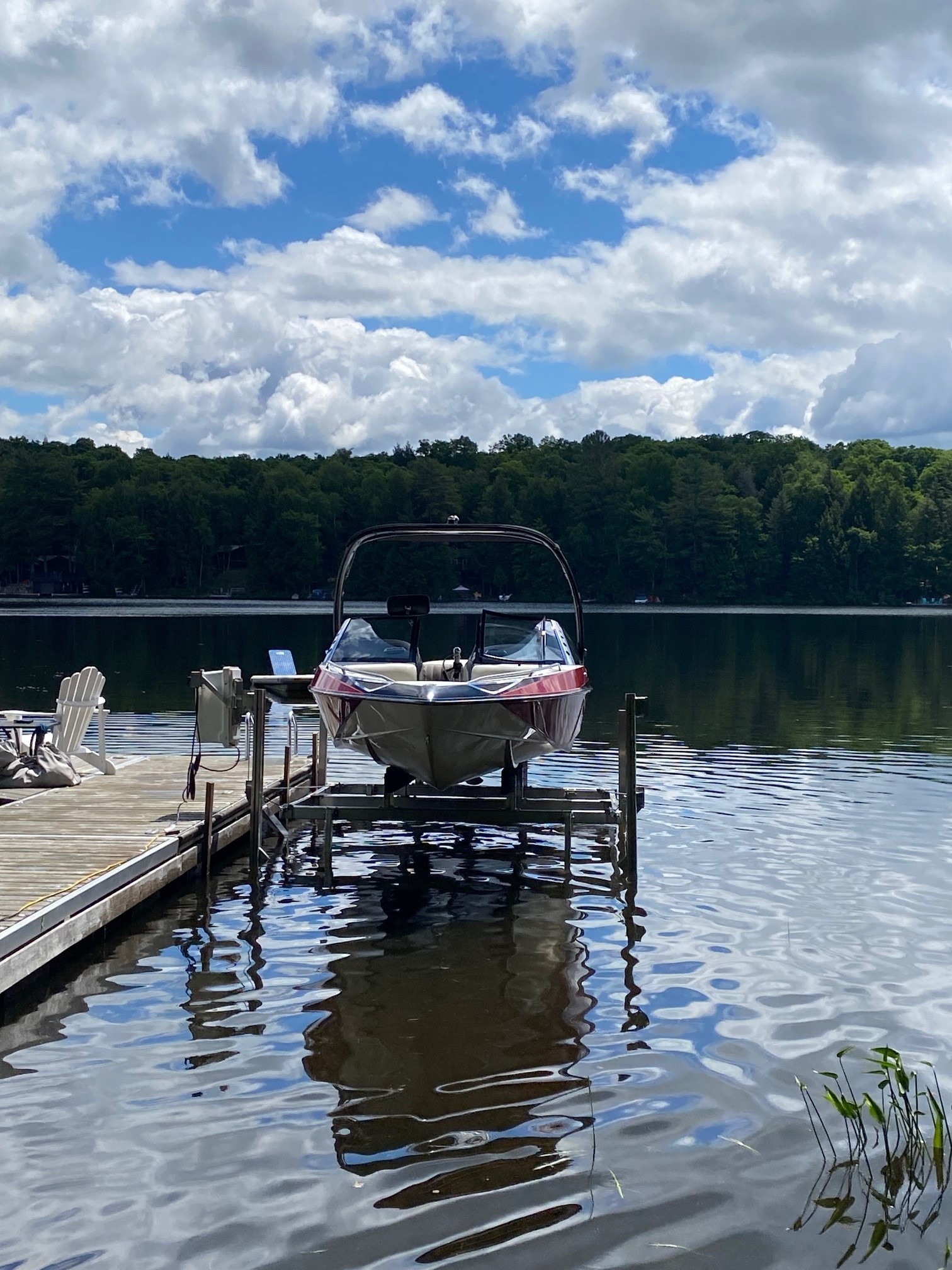

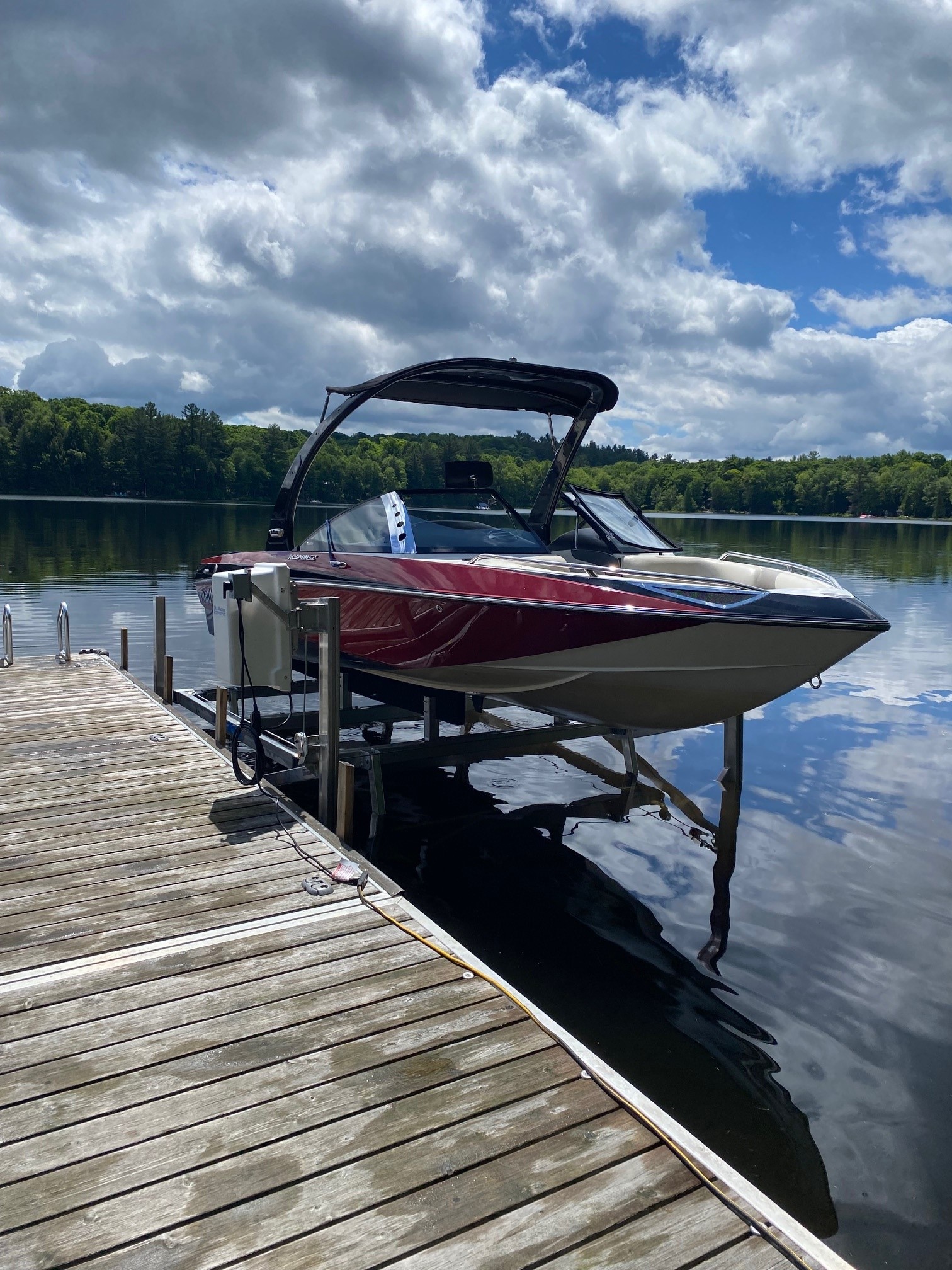

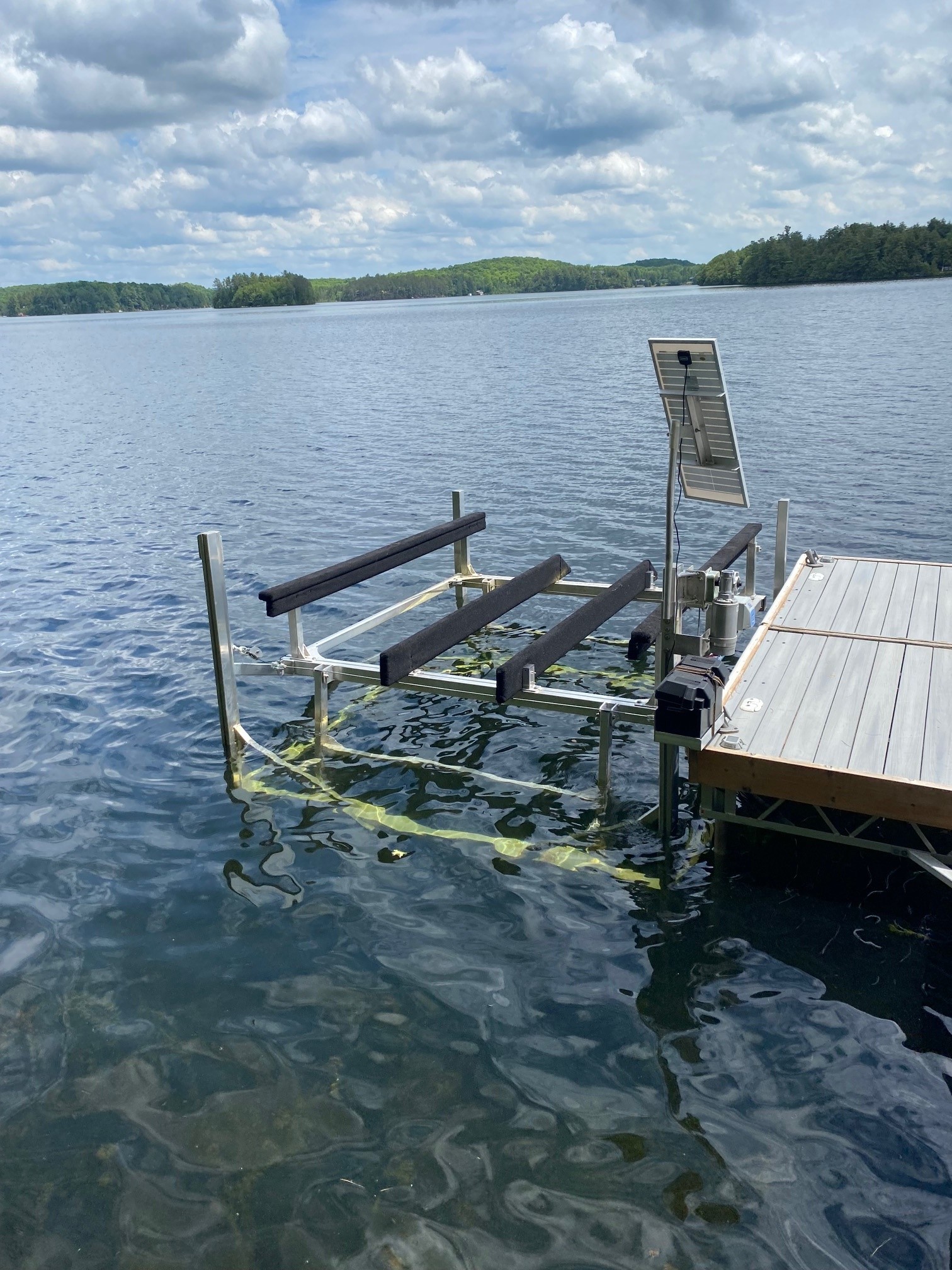

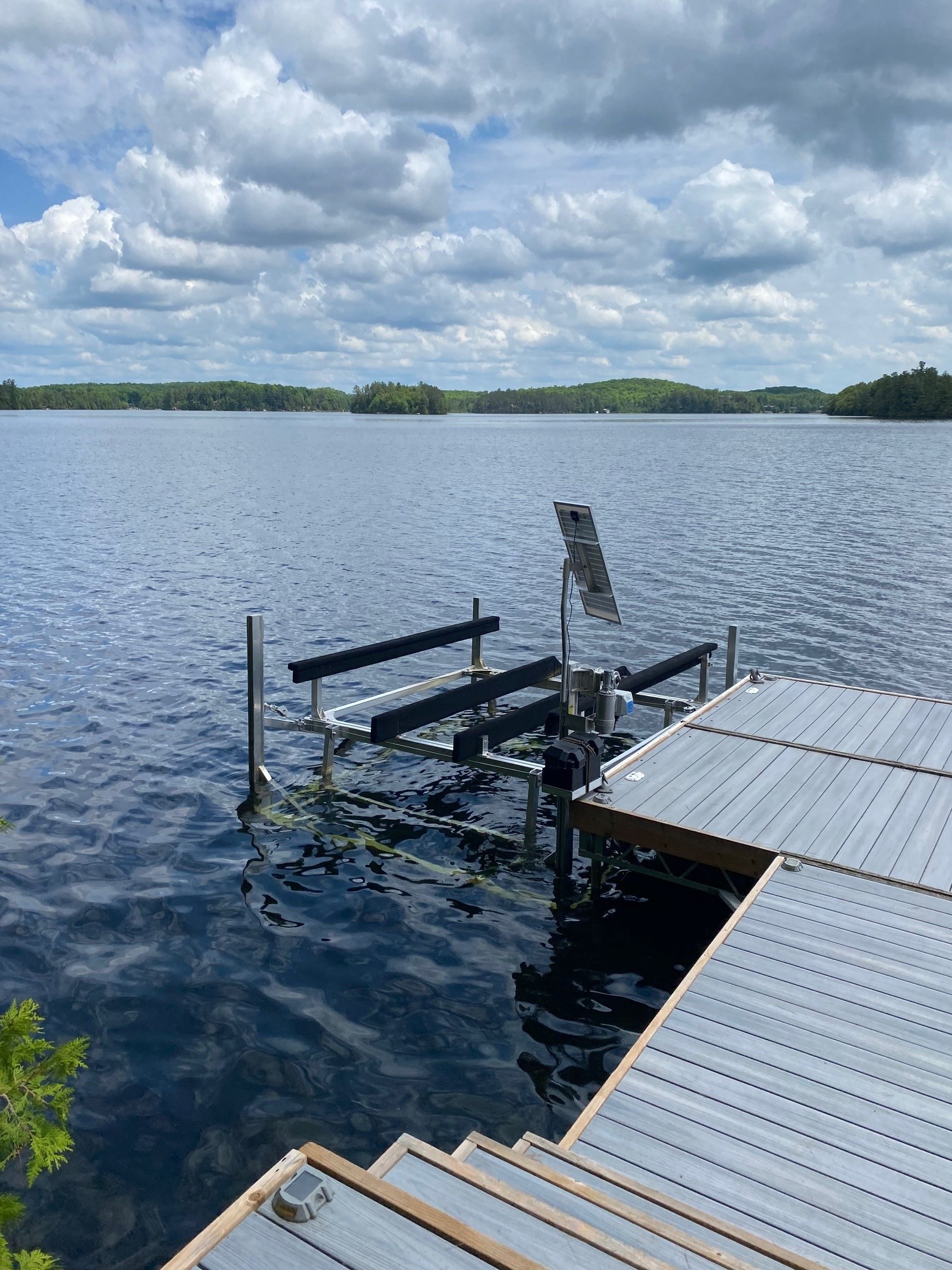

Photos of our Cantilever Boat Lifts

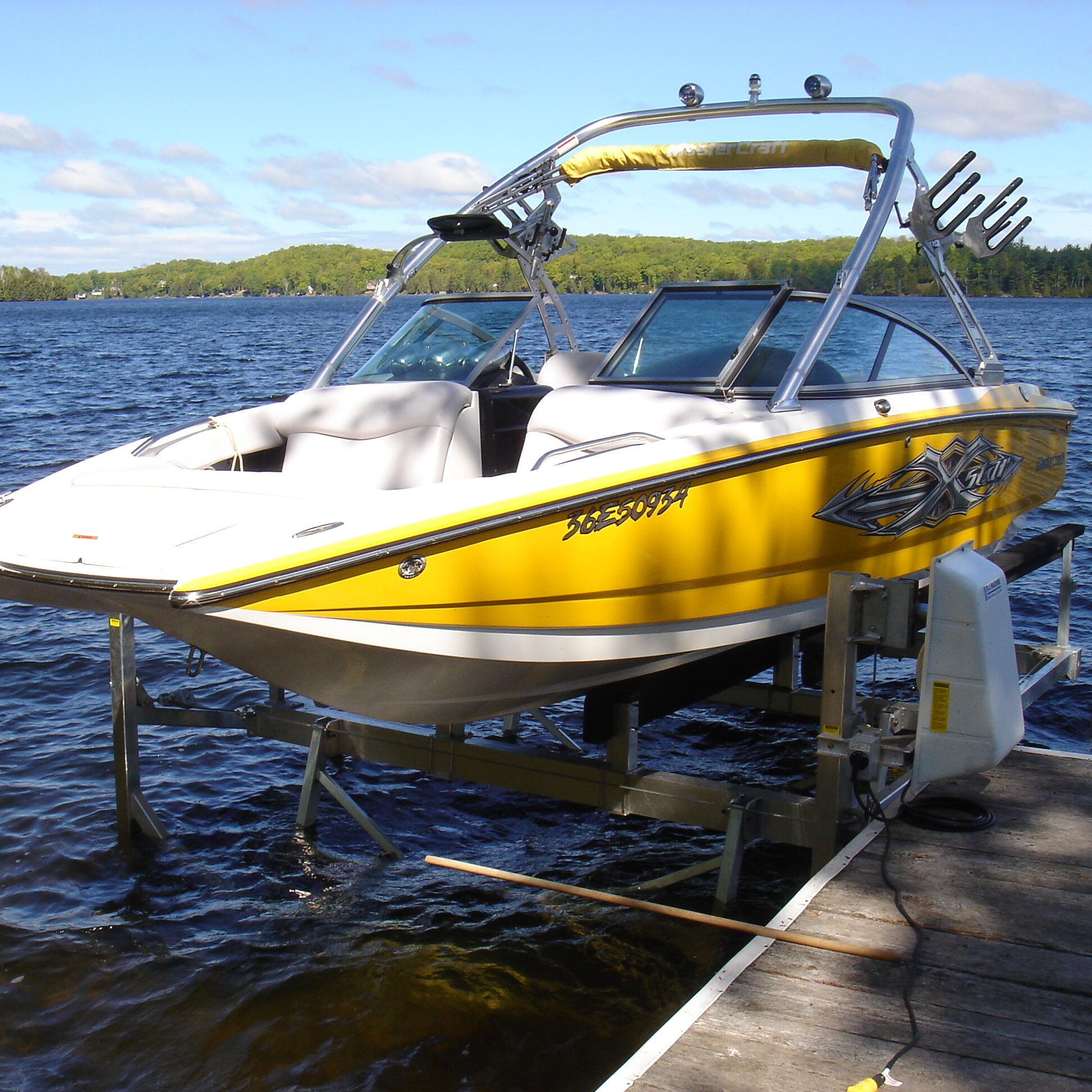

Cantilever Wakeboard/Ski Boat Lift



All of our lifts are manufactured using marine grade 6061T6 aluminum rectangular tubing. By having our own custom extrusions we offer full length adjustable width bunks. These full length raised bunks provide better hull support than the traditional “V” bunk and are easy to load your boat onto. By using grease fittings and bronze bushings in all of our pulleys we help eliminate seized pulleys. All of our movement points ride on Delrin bushings for a smooth up and down motion. Each lift has four infinitively adjustable leveler legs which make leg adjustment easier than the traditional bolt adjusters. Our lifts are all equipped with either an automatic brake winch and handwheel or an electric winch that is available in 120 volt or 12 volt.

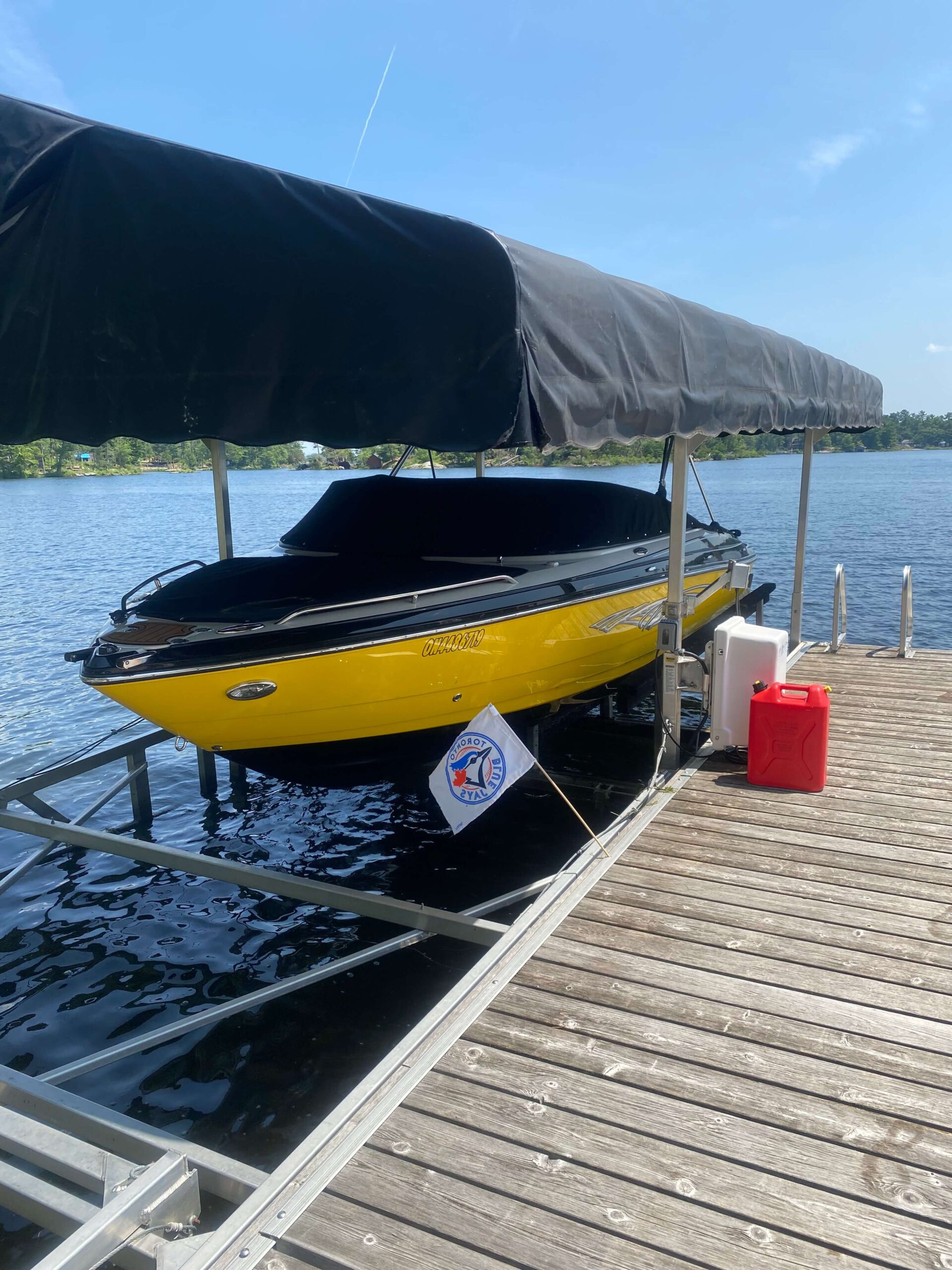

This lift is set up specifically for centre drive boats. The bunks are raised to accommodate your boats prop shaft. Included in the cost of the Wakeboard/Ski Boat Lifts are Full length Side Guides to enable you to enter and exit the lift effortlessly. ( see top of page photo)

Our heavy duty design provides you with one of the strongest boat lifts currently manufactured.

Price Includes

  • Boat lift with manual winch
  • Single set of full length raised carpeted bunks
  • Full Length Side Guides
  • Four easily adjustable legs with attached base pads
  • Rear guide posts
Capacity Lift Height Max. Beam Weight
3000 lbs. 4′ 106″ 699 lbs.
4000 lbs. 4′ 110″ 799 lbs.
5000 lbs. 4′ 110″ 939 lbs.
6000 lbs. 4′ 113″ 1027 lbs.
